In the field of metal fabrication and repair, selecting the appropriate filler material is crucial for ensuring weld integrity, corrosion resistance, and joint strength. The Stainless Steel Welding Electrode is a specialized consumable designed to meet the demands of joining stainless steels and dissimilar metals. This article examines the technical characteristics and applications of one prominent classification,the AWS A5.4 E309-16.

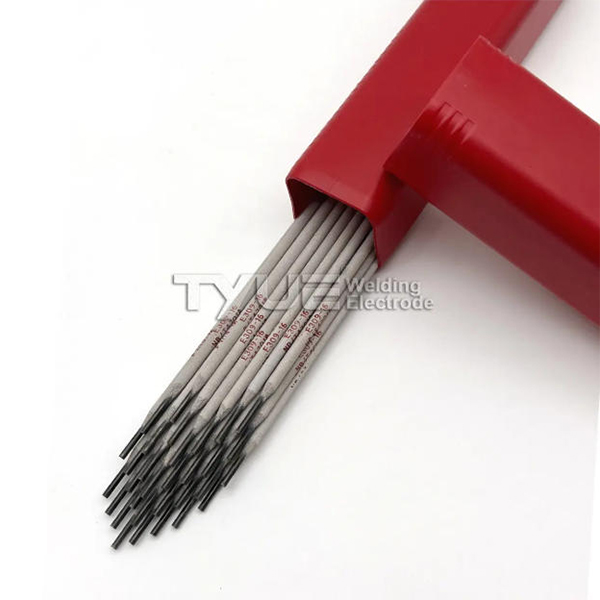

The A302 electrode, conforming to the AWS A5.4 E309-16 specification, is a specific type of Stainless Steel Welding Electrode. It features a rutile (titanium-calcium) coating deposited onto a core wire with a nominal composition of 23% Chromium and 13% Nickel. This coating type is significant, as it provides excellent arc stability and allows for smooth operation using either Alternating Current (AC) or Direct Current (DC) power sources, offering flexibility in various workshop and field conditions.
A primary function of this Stainless Steel Welding Electrode is for joining dissimilar metals. The deposited weld metal from an E309-16 electrode is an austenitic stainless steel with a higher alloy content than common grades like 304. This makes it ideally suited for welding stainless steel overlays (cladding) onto carbon or low-alloy steel substrates and for joining dissimilar combinations, Type 304 stainless to mild steel. The resultant weld metal is designed to resist dilution from the base material, thereby maintaining corrosion resistance and preventing crack formation.
The operational benefits of this electrode contribute to its widespread use. The rutile coating facilitates easy slag removal and produces a smooth, aesthetically pleasing weld bead profile.The weld deposit exhibits good resistance to cracking and oxidation at elevated temperatures, which is essential for components exposed to thermal cycling or high-temperature service. These characteristics make this class of Stainless Steel Welding Electrode a reliable choice for critical applications.
The E309-16 classification, exemplified by products the A302 electrode, serves as a versatile and essential Stainless Steel Welding Electrode. Its high chromium and nickel content, combined with a user-friendly rutile coating, make it the preferred choice for cladding, joining dissimilar metals, and welding certain high-chromium and high-manganese steels. Understanding the specific properties of this Stainless Steel Welding Electrode allows engineers and welders to select the optimal consumable for ensuring durable, corrosion-resistant welds in demanding industrial environments.
