Understanding GMAW (MIG) Wire Coding: The Key to Selecting the Right Filler Metal
Choosing the correct welding wire is not just about diameter—it’s about understanding the wire designation and selecting the right filler metal for the application. A proper wire selection directly impacts weld quality, productivity, and long-term performance.

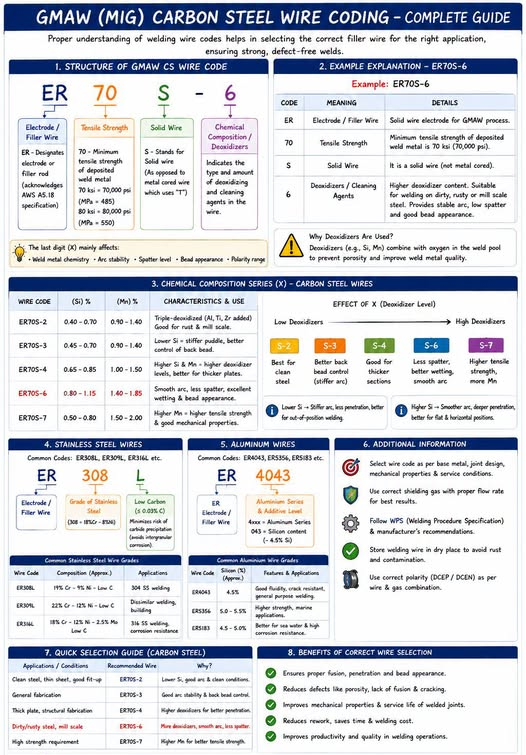

This infographic explains the coding system for Carbon Steel, Stainless Steel, and Aluminum GMAW wires, making wire selection easier for welding engineers, quality professionals, inspectors, and welders.
♦ Example: ER70S-6
• ER – Electrode / Filler Wire
• 70 – Minimum tensile strength of 70 ksi (≈ 490 MPa)
• S – Solid Wire
• 6 – Higher deoxidizer content (Silicon & Manganese) for improved arc stability and welding on rusted or mill-scale surfaces.
♦ Common Wire Grades & Applications
√ ER70S-2 – Clean steel, root passes, precision welding.
√ ER70S-3 – General fabrication on clean materials.
√ ER70S-6 – The industry standard for carbon steel fabrication, offering excellent arc stability, low spatter, and superior bead appearance.
√ ER70S-7 – Higher strength applications with increased manganese content.
♦ Stainless Steel Wire
√ ER308L – Stainless Steel 304/304L fabrication.
√ ER309L – Joining stainless steel to carbon steel (dissimilar metals).
√ ER316L – Marine, food processing, and chemical industries requiring superior corrosion resistance.
♦ Aluminum Wire
√ ER4043 – Excellent fluidity, reduced cracking, and smooth bead appearance.
√ ER5356 – Higher strength, better corrosion resistance, and suitable for marine applications.

♠ Engineering Tip: Selecting the correct filler wire should always consider:
√ Base material composition
√ Mechanical property requirements
√ Joint design and plate thickness
√ Shielding gas compatibility
√ Welding position and heat input
√Applicable standards such as AWS A5.18, AWS A5.9, AWS A5.10, ISO 14341, and ISO 636.
Using the right wire grade not only improves weld quality but also minimizes defects such as porosity, lack of fusion, excessive spatter, and cracking.
“The right filler wire, combined with the correct shielding gas and welding parameters, is the foundation of a strong, reliable, and defect-free weld.”
Which GMAW wire do you use most frequently in your projects—ER70S-6, ER308L, ER316L, or ER5356?
