WELDING SYMBOLS USED IN PRESSURE VESSEL MANUFACTURING

In pressure vessel manufacturing, welding is not only about joining metal plates.

Before a welder strikes the arc, the drawing already defines what type of weld to perform, where to apply it, how much to weld, and which process to follow — all through welding symbols.

Why Welding Symbols Matter in Pressure Vessel Fabrication

Pressure vessels operate under internal pressure and often in critical environments.

Incorrect weld interpretation can lead to:

- Lack of penetration

- Weld defects and leak paths

- Rework and production delays

- Failure during hydrostatic or pneumatic testing

- Reduced service life and safety risks

That is why fabrication drawings use standardized symbols according to AWS A2.4 and relevant ASME Section VIII requirements.

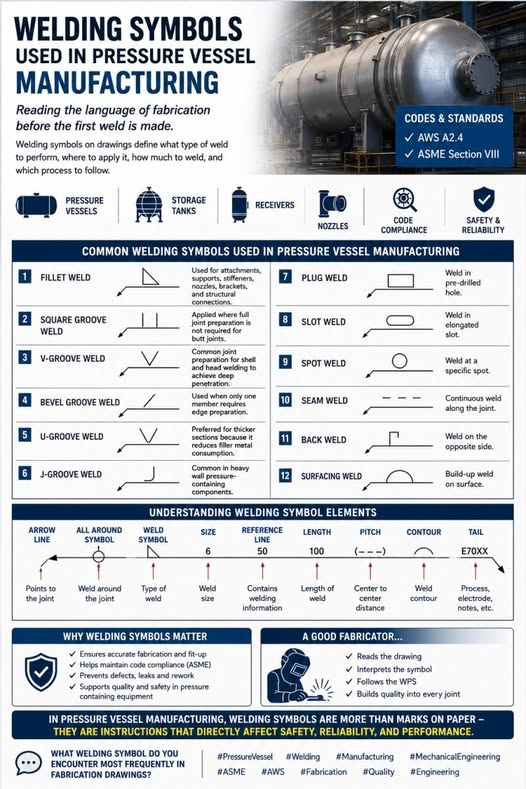

Common Welding Symbols Used in Pressure Vessel Manufacturing

- Fillet Weld:

Used for attachments, supports, stiffeners, nozzles, brackets, and structural connections.

- Square Groove Weld:

Applied where full joint preparation is not required for butt joints.

- V-Groove Weld:

One of the most common joint preparations for shell and head welding to achieve deep penetration.

- Bevel Groove Weld:

Used when only one member requires edge preparation.

- U-Groove Weld:

Preferred for thicker sections because it reduces filler metal consumption.

- J-Groove Weld:

Common in heavy wall pressure-containing components.

- Plug and Slot Welds:

Used for localized joining where direct edge welding is impractical.

- Spot and Seam Welds:

Typically applied in specialized manufacturing applications.

Understanding Welding Symbol Elements

A welding symbol contains much more than the weld type.

A complete symbol may include:

- Arrow Line → Indicates the exact joint location

- Reference Line → Holds welding information

- Weld Symbol → Defines weld type

- Size → Required weld dimensions

- Length → Total weld length

- Pitch → Distance between weld segments

- Contour → Required weld profile

- Tail → Welding process, filler metal, notes, WPS reference

Where This Becomes Critical in Pressure Vessel Projects

During fabrication of pressure vessels, welding symbols work together with:

- WPS (Welding Procedure Specification)

- PQR (Procedure Qualification Record)

- WPQ (Welder Performance Qualification)

- NDT Requirements (RT, UT, MT, PT)

- ASME Code Compliance

A good fabricator does not guess the weld.

They read the drawing, interpret the symbol, follow the procedure, and build quality into every joint.

In pressure vessel manufacturing, welding symbols are more than marks on paper — they are instructions that directly affect safety, reliability, and performance.

What welding symbol do you encounter most frequently in fabrication drawings?
